Paste Kettle

Our offered range of High Speed Mixer / High Speed Disperser is manufactured using high graded stainless steel which operates at 1440 RPM and having a capacity of 500 ltrs to 1500 ltrs. These mixers are composed of two vessels and a single agitator. Apart from this, we also offer industrial high speed mixers and high speed blenders.

Paste Kettle Manufacturer

High Speed Disperser

Ideal for water based acrlic paitn, paint dispersing, Paint Manufacturing

Benefits of High Speed Disperser

We are instrumental in offering a quality range of Paste Kettle Vessel, specially manufactured by high grade raw material. This Paste Kettle Vessel is widely appreciated for its features like efficient for preparation of starch paste, excellent durability, strong structure, high performance and fine finishing. We are also offering customized range of Paste Kettle Vessels as per the requirement of the client. We are offering Paste Kettle Vessel at market leading prices.

Send Enquiry

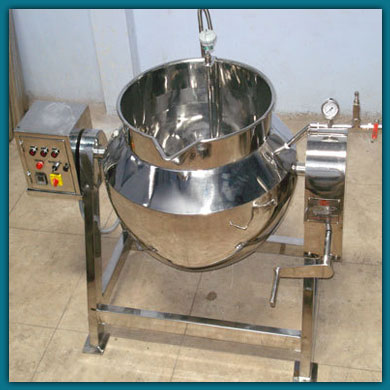

Construction of Paste Kettle Vessel

Paste Kettle Vessel Will Be Made Out Of S.S. 304 Rectangular Pipes Of 3 Mm Thk And Will Be An Independent Resting Type Frame Work Where No Foundation Will Be Required. The Kettle Will Be A Hemispherical Type Bowl With Either Steam / Oil / Water Heating Jacket Will Be Provided. The Paste Kettle Will Be Manufactured From 2.5 Mm Thk S.S. 304 Sheet And The Jacket Will Be Of 2.5 Mm Mild Steel (In Case Of Steam Jacket The Thickness Will Be 4 Mm). There Will Be Oil / Water Heated Fitted At The Back Bottom Side Of The Kettle. The Kettle Will Be Having A Worm Type Arrangement For Tilting. A Temperature Controller And A Temp Indicator Will Be Provided For Temp Control And Indication. The Kettle Will Be Insulated With 50 Mm Thk Glass wool Insulation And Claded With 16 Swg S.S. 304 Sheet. Kettle Will Be Buffed To 150 Grit Matt Finish Externally And Internally The Kettle Will Be Buffed To 220 Grit Mirror Finish.


Available In

Functions

Basically This Unit Is Used For Preparation Of Starch Paste. Hemispherical Shape Ensures That The Heating Of The Starch Paste Is Uniform And Gets More Surface Area. The Tilting Type Arrangement Ensures Ease In Unloading The Paste Into Any Container Or Vessel. The Starch Is Put In The Kettle And Water Is Added Till Desired Thickness Is Achieved. The Kettle Is Jacketed And Is Heated Till Till The Starch Melts And A Thick Paste Is Achieved. This Paste Can Be Agitated Either Manually Or With The Help Of A Anchor Type Agitator Which Will Constantly Stir The Paste So That There Will No Lumps Formation And Proper Mixing Is Achieved. Temperature Can Be Set To Desired Temp By Adjusting The Thermostat Provided And The Temperature Can Be Seen In The Dial Thermometer Provided.

Technical Specification of Paste Kettle

Model SPK 100 SPK 200
Gross Volume 100 Liters approx. 200 Liters approx.
Working Volume 80 Liters approx. 160 Liters approx.
Machine Constructions · Contact Parts: Stainless Steel 316

· Non-Contact Parts: Stainless Steel 304

· End Shaft: EN – 8 material

· Control Panel: Stainless Steel 304

· Contact Parts: Stainless Steel 316

· Non-Contact Parts: Stainless Steel 304

· End Shaft: EN – 8 material

· Control Panel: Stainless Steel 304

Material of Constructions · Shell: Stainless Steel 316

· Jacket: Stainless Steel 304

· Insulation: Stainless Steel 304

· Shell: Stainless Steel 316

· Jacket: Stainless Steel 304

· Insulation: Stainless Steel 304

Design Tilting Type Tilting Type
Heating Mode Through Electrical Heaters Through Electrical Heaters
Jacket Thickness SS 304 Materials SS 304 Materials
Insulation Mineral wool insulation Mineral wool insulation
Cladding Stainless Steel 304 materials Stainless Steel 304 materials
Agitator Anchor type agitator Anchor type agitator
Anchor Mounting Top of the kettle fixed type Top of the kettle fixed type
Drive 1 H. P., 1440 RPM Induction Motor 2 H. P., 1440 RPM Induction Motor
Power Voltage 440 Volts, 3 Phase, 50 Hertz 440 Volts, 3 Phase, 50 Hertz
Gearbox Suitable size gearbox Suitable size gearbox
Gearbox RPM 30 RPM 30 RPM
Top Lid Loose Lid type cover Loose Lid type cover
Tilting System Design Worm Gear type with Handle Worm Gear type with Handle
Frame Construction Rectangular pipe in S.S. 304 construction with no open ends Rectangular pipe in S.S. 304 construction with no open ends
Heaters Water Immersible type Heaters Water Immersible type Heaters
Bearings Pillow type Pillow type


Technical Specification
of Paste Kettle

Model APK-50 APK-100 APK-150 APK-200
Gross Volume approx. 50 Liters 100 Liters 150 Liters 200 Liters
Working Volume approx. 37 Liters 75 Liters 110 Liters 150 Liters
Stand Pillar type Pillar type Pillar type Pillar type
Agitator Design Anchor Stirrer Anchor Stirrer Anchor Stirrer Anchor Stirrer
Jacket Option Yes Yes Yes Yes
Heating Media Steam/Oil Steam/Oil Steam/Oil Steam/Oil
Tilting Arrangement Hand wheel type Hand wheel type Hand wheel type Hand wheel type
Motor Power 1 H. P. 1.5 H. P. 1.5 H. P. 2 H. P.
Power Voltage 415 V, 3 Ph., 50 Hz. 415 V, 3 Ph., 50 Hz. 415 V, 3 Ph., 50 Hz. 415 V, 3 Ph., 50 Hz.
Blades RPM 24 RPM 24 RPM 24 RPM 24 RPM
Jacket Nozzles ¾" BSP ¾" BSP ¾" BSP ¾" BSP
Net Weight 250 kgs. approx. 275 kgs. approx. 300 kgs. approx. 325 kgs. approx.

* Power voltage can be adjusted as per customer's domestic power voltage requirements.
* Rights of technical improvements & modification reserved.
* Illustrations & dimensions are shown for information purpose only.
