Application of Sigma Mixer or Sigma Kneader : Kneading, Mixing High Viscous material, Pigment Kneading
Sigma Mixer or Sigma Kneader is generally used for heavy duty mixing, kneading, dough knaeding, uses in the Paint, Pigment, food, adhesives, chemical, pharmaceutical, dyestuff industries.
This machine has a double 'U' shaped container welded together inside which rotates 2 (two) 'Z' type sigma blades in opposite directions of each other sigma mixer blade. The clearances between the walls and the container are kept to a minimum for optimum efficiency in kneading and mixing. The shafts of the sigma blades are fitted in bearing blocks which are each provided with roller bearings, steel glands/teflon rubber seals for smooth and leakless operations. The kneader is mounted on a sturdy base frame fabricated out of ISMC sections and are free from vibrations. For cooling and heating jackets are provided.
These types of machines are available in M.S. And S.S. construction. The Sigma kneader can be tilted by means of a mechanical system or manually and for bigger models beyond 250 Kgs we provided hydraulic tilting.
Hydraulic tilting system is provided with complete power pack, electric motor, pressure valves, pipes, fittings, cylinders and hoses which makes the tilting mechanism quick, easy and simple to operate.
| Model | Capacity – Litres | Motor (H.P.) | ||
| Working Capacity | Gross Capacity | General | Heavy Duty | |
| ASM – 50 | 50 | 80 | 5 H.P. | 7.5 H.P. |
| ASM – 75 | 75 | 110 | 7.5 H.P. | 10 H.P. |
| ASM – 100 | 100 | 150 | 10 H.P. | 15 H.P. |
| ASM – 150 | 150 | 200 | 15 H.P. | 20 H.P. |
| ASM – 200 | 200 | 300 | 20 H.P. | 25 H.P. |
| ASM – 400 | 400 | 550 | 30 H.P. | 40 H.P. |
| ASM – 500 | 500 | 750 | 40 H.P. | 50 H.P. |
| ASM – 750 | 750 | 1150 | 50 H.P. | 60 H.P. |
| ASM – 1000 | 1000 | 1500 | 60 H.P. | 70 H.P. |
| ASM – 1500 | 1500 | 2100 | 75 H.P. | 80 H.P. |
| ASM – 2000 | 2000 | 2600 | 80 H.P. | 90 H.P. |
| ASM – 3000 | 3000 | 3800 | 100 H.P. | 120 H.P. |
* Power voltage can be adjusted as per customer’s domestic power voltage requirements. * Rights of technical improvements & modification reserved. * Illustrations & dimensions are shown for information purpose only.

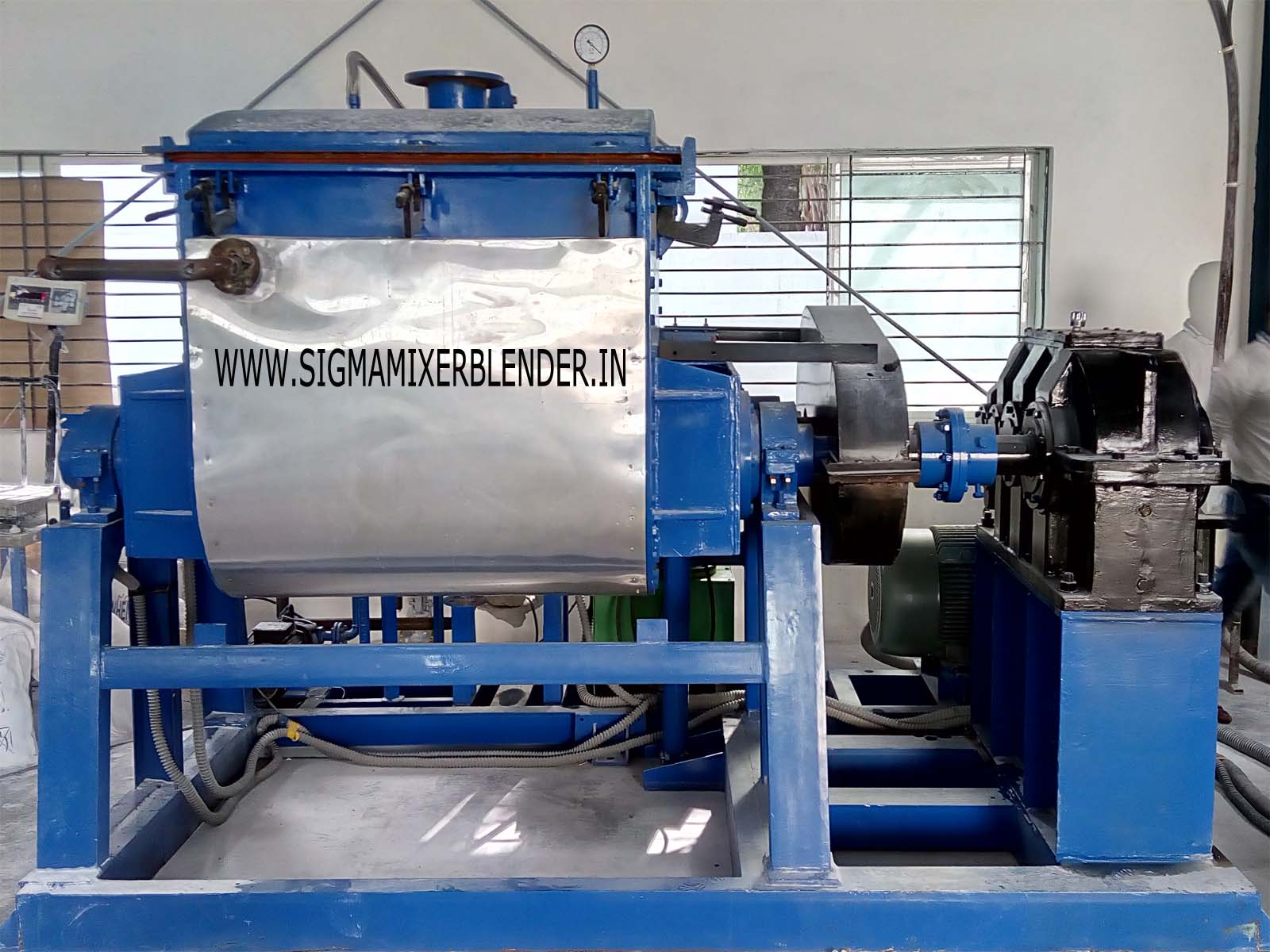

.jpg "Sigma mixer Kneader")

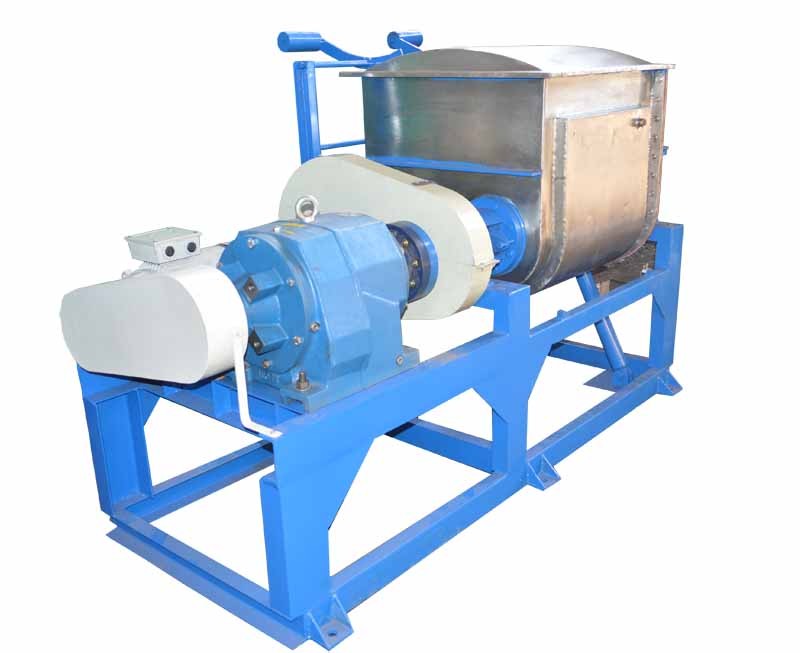

Stainless Steel Sigma Mixer kneader

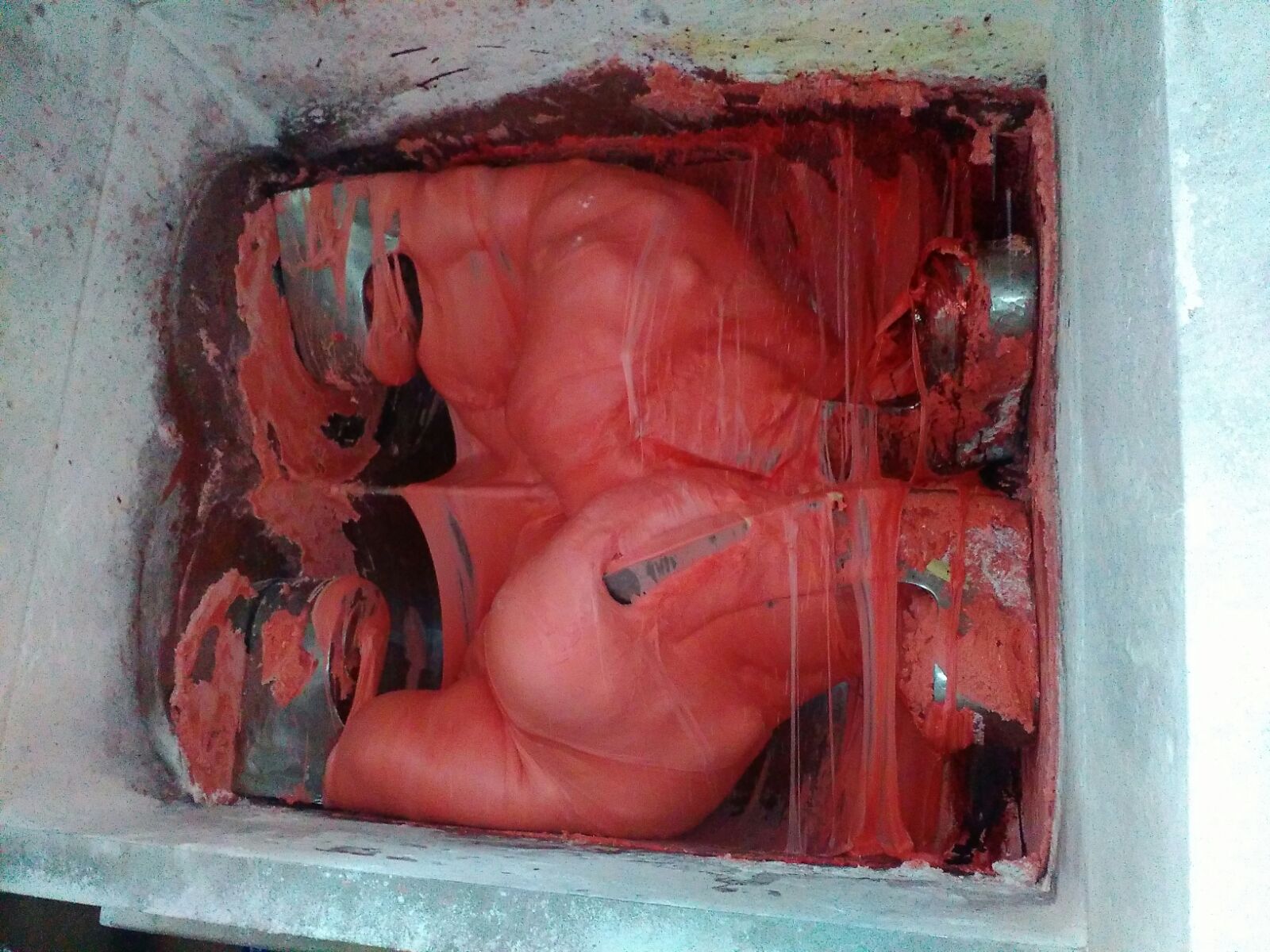

Chewing Gum Sigma Mixer, Bubble gum Sigma Kneader
