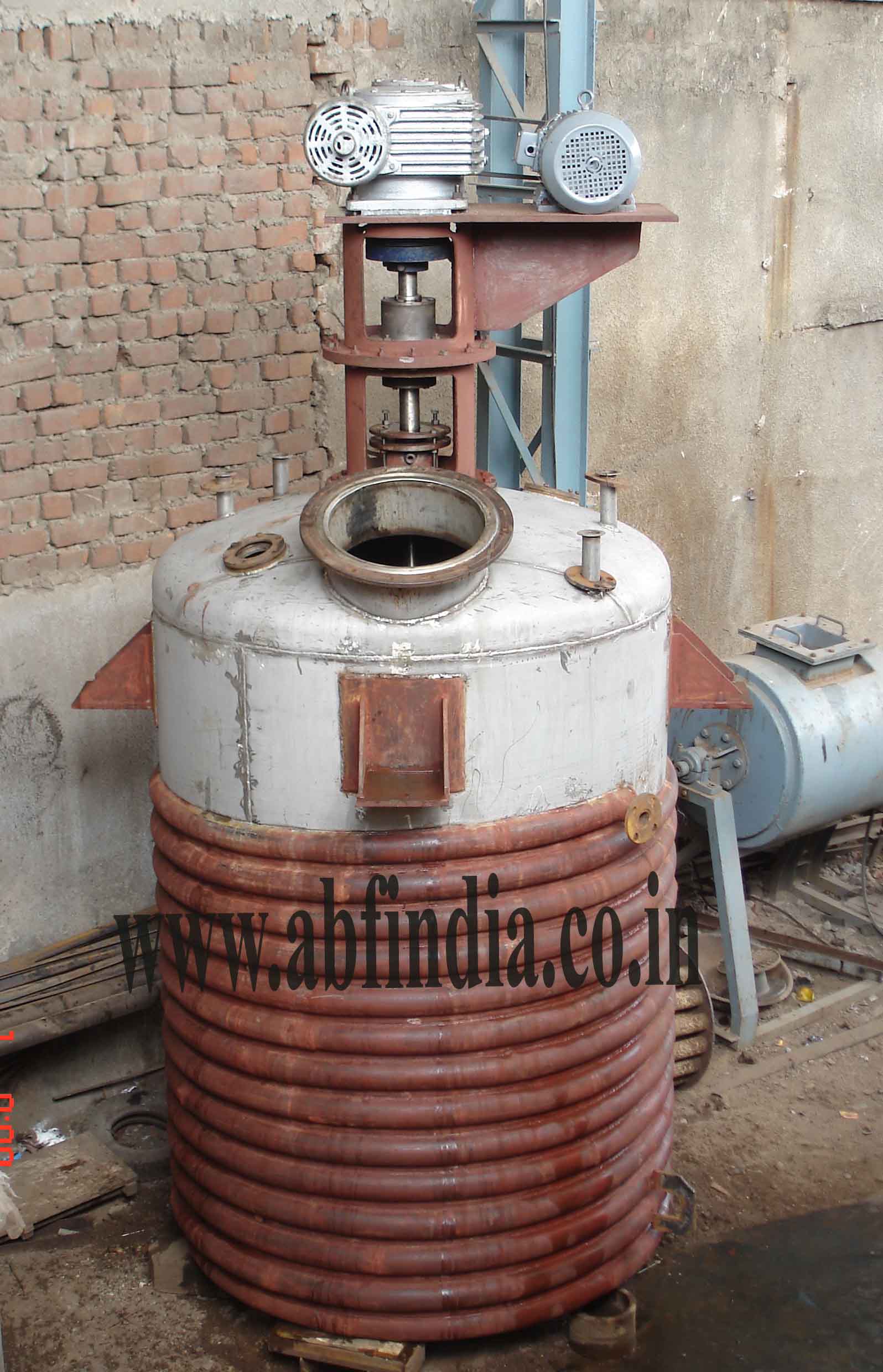

Limpet Coil Reaction Vessel

Limpet Coil reaction Vessel

limpte coil reaction vessel

Limpet Coil reaction Vessel

Limpet coil reactor vessels are used to control the temperature of the reactants with the help of heating or cooling media circulated through coils surrounding the main vessel.

Send Enquiry

Limpet Coil Reaction Vessel Description :

We are considered as a reputed Manufacturer and Supplier of Limpet Coil Reaction Vessel. The Limpet Coil Reaction Vessel manufactured by us is made using the high grade components like Stainless Steel (SS-316, SS-304, Alloy-2205), and Mild Steel. It is highly demanded in Industrial sector for conducting chemical reactions under pressure, temperature, cooling or at atmospheric conditions.

Technical Specification :

The construction of Limpet Coil Reactor is same as that of Jacketed Reactor except instead of Jacket on the Shell of Reactor Limpet Coil is welded on it. LimpetCoil Reaction Vessel consist of a Cylindrical vertical shell with standard torospherical dish on both ends.Limpet Coil is Half round Pipes welded on the outer surface of the shell and also on the bottom dish of the Reactor. Limpet coil is made of either Mild Steel Or Stainless Steel. It is either Double end double start for both heating and cooling through limpet coil or Normal Single coil for either heating or cooling. Limpet Coil Welding is performed by using high grade filler rods depending on MOC of the Limpet Coil to withstand design pressure.

The drive is designed to give maintenance and trouble free performance. The Agitator Shaft is coupled to the Reduction Gear Box with Flexible coupling. The Reduction Gear Box is mounted on the Top of the Lantern Assembly and is driven by Motor using V belt pulley. Variator or AC drive can by used to get variable speed of the Agitator if desired.

On the other end of the shaft Blade is fitted of different types as per the need of the Process viz. Single Anchor Stirrer, Double Anchor Stirrer, Gate type Stirrer, Paddle Stirrer, Flat or Curved Turbine & Propeller types. Baffles are also provided inside the shell as per the requirement.

Top Dish of the Reactor Vessel is provided with various Nozzles viz. Manhole, Light Glass, Sight glass, Vapour, Addition, Reflux, Thermowell etc.

Bottom Dish of the Reactor is provided with an Outlet nozzle where valve is fitted.

Limpet Coil Reaction Vessel, Stainless steel Limpet Coil Reaction Vessel, Limpet Coil Reaction Vessel, Stainless Steel Reaction Vessel manufacturer and supplier India
<
