Plough Shear Mixer
Manufacturers & Exporters

Plough Shear Mixer

Plough Shear Mixer

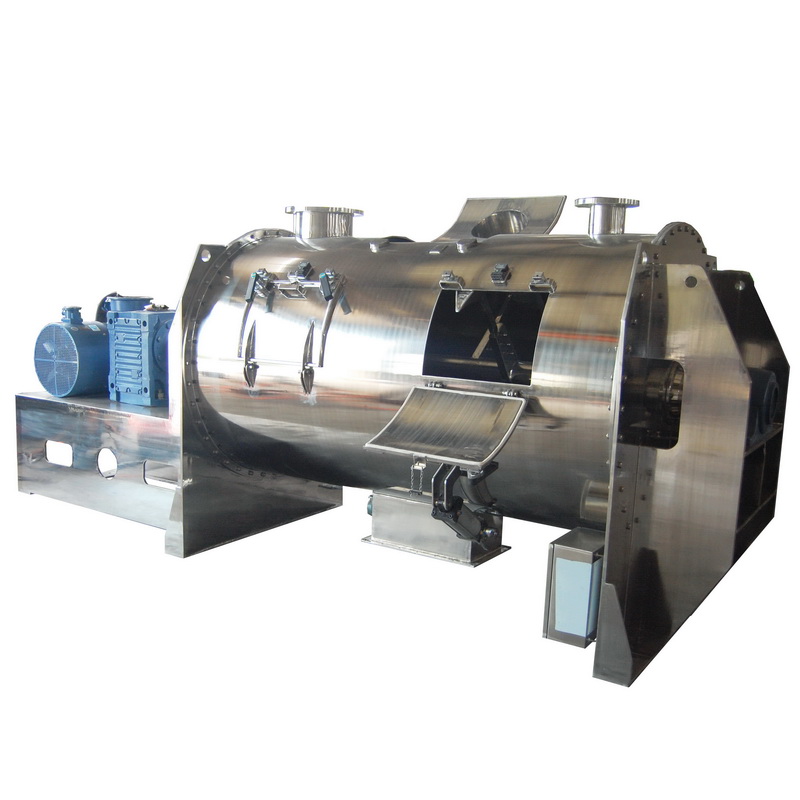

plough shear mixer is a horizontal mixer with cylindrical drum and horizontally installed mixing shaft. The mixer is designed for heavy duty blending of both dry and wet material. Plough shape shovels mounted on a central shaft with its sharp ends easily penetrate through the dense powder and thick pasty mass. Extra shear can be attained by adding side mounted choppers.

Send Enquiry

Design features of plough shear mixer :

Plough Shear mixer manufacturer

Offering Agitators for Various Mixing Application like:



Typical applications include homogenous mixing of pastes, rubber, heavy plastic mass, food, pharmaceutical, chemicals etc.



ABSTER Plough Shear mixer is a horizontal mixing system with horizontal, cylindrical drum and horizontally installed mixing shaft .



ABSTER Plough Shear Mixeris designed for heavy duty blending of both dry and wet materials. Plough shape shovels mounted on a central shaft with its pointed ends are easily penetrable through the dense powder, pasty mass.



The overlapping of shovels coupled with its shape and the high speed of the ploughs produces good mixing action and high turbulence.

The arrangement of mixing tools is the result of many years of development by Abster process equipments combined with experience based on mixing trials and practical scientific work. Abster Plough Mixers are high energy, high shear, and high-speed mixers with cylindrical short aspect ratio mixing chambers. Extra shear can be achieved by adding side cutters or intensifiers. The use of high speed choppers further reduce the product particle size thus resulting in a better mix.



Plough Mixers are available with 'Easy Clean' cantilevered shaft, subject to application.

Capacity table for Plough Shear Mixer



Model Nominal Volume Working Volume Speed (RPM) Motor Power
PM-0.1 100L 40-60L 101rpm (shaft)
1440rpm (chopper)
3KW
1.5KW x 2
PM-0.3 300L 120-180L 85rpm (shaft)
1440rpm (chopper)
4KW
1.5KW x 2
PM-0.5 500L 200-300L 85rpm (shaft)
1440rpm(chopper)
7.5KW
1.5KW x 2
PM-1 1000L 400-600L 85rpm (shaft)
1440rpm (chopper)
11KW
4KW x 2
PM-1.5 1500L 600-900L 85rpm (shaft)
1440rpm (chopper)
15KW
4KW x 2
PM-2 2000L 800-1200L 85rpm (shaft)
1440rpm (chopper)
18.5KW
4KW x 3
PM-3 3000L 1200-1800L 57rpm (shaft)
1440rpm (chopper)
18.5KW
4KW x 3
PM-4 4000L 1600-2400L 57rpm (shaft)
1440rpm (chopper)
22KW
4KW x 4
PM-6 6000L 2400-3600L 57rpm (shaft)
1440rpm (chopper)
30KW
4KW x 4
PM-8 8000L 3200-4800L 42rpm (shaft)
1440rpm (chopper)
45KW
4KW x 4
PM-10 10000L 4000-6000L 33rpm (shaft)
1440rpm (chopper)
55KW
5.5KW x 5
PM-12 12000L 4800-7200L 30rpm (shaft)
1440rpm (chopper)
55KW
5.5KW x 5
PM-15 15000L 6000-9000L 30rpm (shaft)
1440rpm (chopper)
75KW
5.5KW x 5
PM-20 20000L 8000-12000L 30rpm (shaft)
1440rpm (chopper)
90KW
5.5KW x 5


Advantages
